In this final project, we perform regression analysis using building specifications to estimate energy performance of buildings (EPB), specifically heating and cooling load. The dataset used in this work is a publicaly available simulated dataset found in the UC Irvine Machine Learning Repository ([dataset link](https://archive.ics.uci.edu/dataset/242/energy+efficiency)).
### Dataset Overview {data-height=28}
In total, there are 768 observations (buildings). There are 8 predictor variables and 2 response variables. Figure [1](#intro-plot) shows a basic summary of the full dataset. From this plot, we find that the entire dataset is clean with no missing data. This is a simulated dataset that was created to investigate the effect of eight input variables on determining two output variables. The "Dataset Variables" table shows the variable names and number of possible values.
### Simulated Building Information {data-height=35}
There are 12 simulated building forms in total, composed of 18 "elements." The following assumptions are made for all buildings:
* Location and occupants: Residential building in Athens, Greece, with 7 residents
* Fixed activity of 70 Watts
* All internal and thermal properties are the same
* $(12 \text{ building forms } \times 3 \text{ glazing area variations } \newline \times 5 \text{ glazing area distributions } \times 4 \text{ orientations }) + \newline (12 \text{ building forms } \times 4 \text{ orientations w/o glazing}) = 768 \text{ buildings}$
Column {data-width=225}
---
### Project Focus
This project focuses on a specific claim made in the original work: classical regression analysis is insufficient for modeling with this dataset, hence favoring IRLS and RF. This final project aims to verify the claim.
The end goal is to determine if the claim is true, and if so, how much better is IRLS and RF than classical regression analysis and modeling? This will be done by comparing the provided mean absolute error (MAE), mean square error (MSE), and mean relative error (MRE) values in the original work and comparing it with those found in this project.
The first step is perform exploratory data analysis (EDA). Then, the best set of variables to use for modeling heating and cooling loads will be found using several processes. This will be done using the entire dataset.
Once the variables for each model have been chosen, the same experiment conducted in the original work to determine the MAE, MSE, and MRE of the IRLS and RF models will be performed. This involves many repetitions of shuffling the dataset, creating training and testing splits, fitting models, and measuring errors. This will be discussed in further detail in the "Model Analysis" section.
Before EDA, we briefly introduce IRLS and RF to better understand how each works.
Column {data-width=300}
---
### Introduction Plot {data-height=43}
<!-- Figure 1 -->
<a name="intro-plot"></a>
```{r intro-plot, echo=FALSE, fig.width=9}
# Load the data and remove missing data
df <- read_excel("./data/ENB2012_data.xlsx", na = c("?", "NA"))
# Rename the variables to their defined names
df <- df %>% rename(relative_compactness = X1, surface_area = X2,
wall_area = X3, roof_area = X4, overall_height = X5,
orientation = X6, glazing_area = X7, glazing_area_dist = X8,
heat_load = Y1, cool_load = Y2)

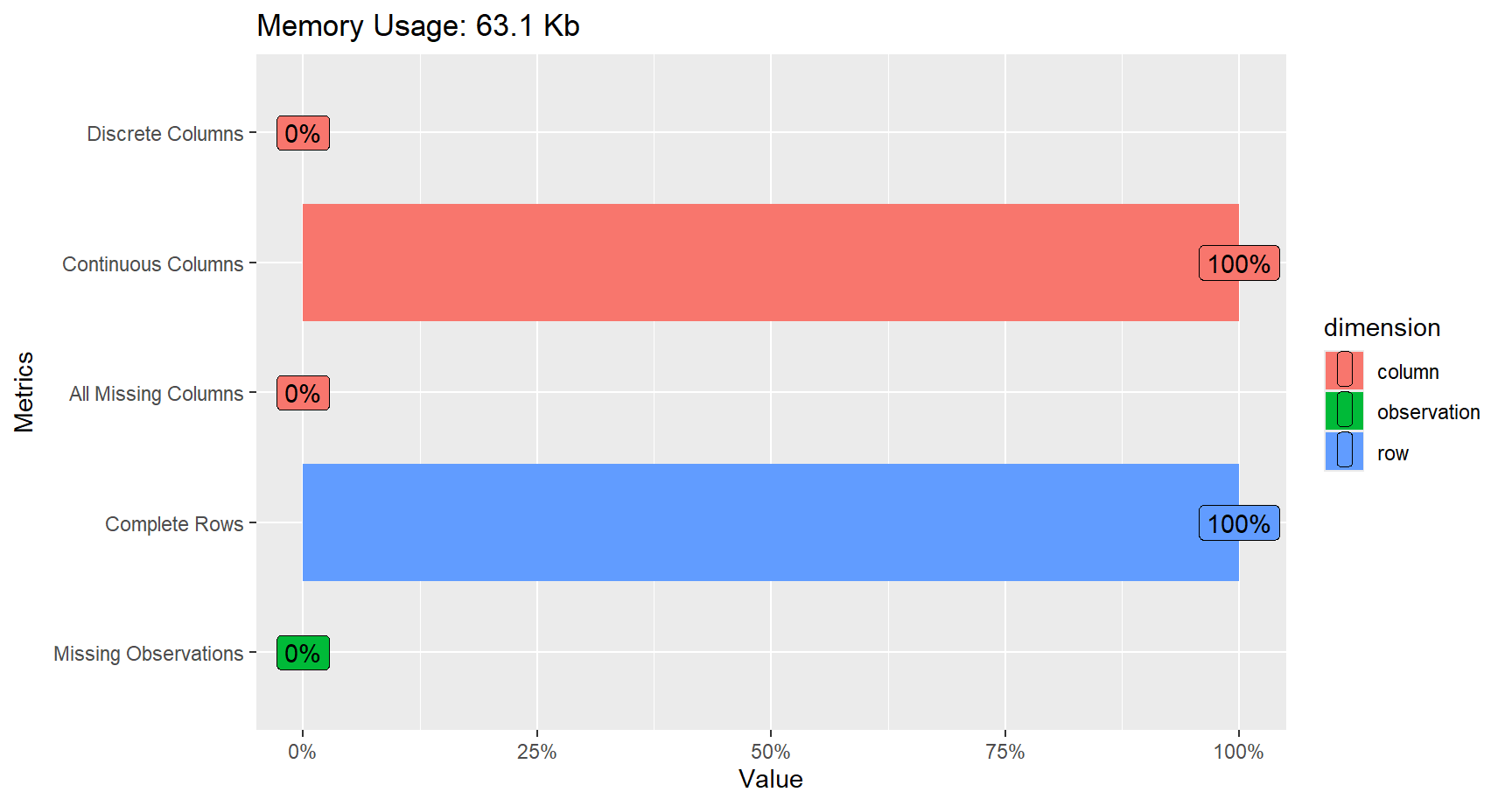

plot_intro(df) # visualize basic information about the full dataset
```
### Dataset Variables {data-height=50}
```{r echo=FALSE, warning=FALSE, message=FALSE}
# Define the variable information
vars <- c("X1", "X2", "X3", "X4", "X5", "X6", "X7", "X8", "Y1", "Y2")
var_names <- c("Relative compactness", "Surface area", "Wall area", "Roof area",
"Overall height", "Orientation", "Glazing area", "Glazing area distribution",
"Heating load", "Cooling load")
n_vals <- c(12, 12, 7, 4, 2, 4, 4, 6, 586, 636)
# Create a data frame of variable information
var_df <- data.frame(
Variable = vars,
Name = var_names,
Vals = n_vals
)
# Rename column headers
names(var_df) <- c("Variable", "Variable Names", "Number of Possible Values")
# Create the table
tt(var_df) %>%
# Center align columns
style_tt(j = 1:3, align = "c")
```
Background
===
Column {data-width=600}
---
### Overview {data-height=70}
In the original work [@tsanas2012accurate], statistical machine learning methods are used to train and test models on the dataset to predict heat and cool loads given all predictors. The reason for investigating statistical machine learning for this specific problem is that classical least squares regression techniques is unable to sufficiently model and capture the non-linear nature of the problem. Two methods are explored in the original work: iteratively reweighted least squares (IRLS) and random forest (RF). In addition, we briefly discuss why Spearman rank correlation is used instead of Pearson correlation.
### Iteratively Reweighted Least Squares (IRLS) {data-height=75}
IRLS is simpler than RF and is a commonly used regression method. It works by adjusting the weights of a regression models coefficients to reduce the impact of outliers in data. This ultimately leads to an improved least squares estimate and overall model fit. More information on IRLS can be found in literature [@bishop2006pattern; @tsanas2009accurate]. However, in applications where residuals do not follow a Gaussian distribution, IRLS can struggle to sufficiently model complex relationships. A basic flowchart of IRLS is shown in Figure [2](#IRLS-flowchart). The flowchart was generated using Google Gemini.
### Random Forst (RF) {data-height=90}
RF is an extension of the classification and regression tree (CART). CART is a nonlinear method designed for classification and regression analysis. The concept of CART is to repeatedly split an input feature space (predictors) into smaller sub-regions. The feature space is iteratively split into smaller and smaller sub-regions until it is not possible to split it any more, or some criterion to stop splitting has been met. RF is a collection of many "trees." A random subset of the data is chosen for each tree, and then the CART procedure is performed. A simple illustration of RF is shown in Figure [3](#RF-illustration). The illustration was generated using Google Gemini.
<!-- When response variables are categorical, it serves as a classification model. It can also be used to build regression trees when predictors are continuous, numeric values. -->
### Spearman Rank Correlation {data-height=75}
Spearman rank correlation is used instead of the Pearson correlation since that is what the original work chose to do. This decision was made because most of the predictors have non-Gaussian distributions and non-linear relationships. This method determines how well the relationship between two variables can be described using a monotonic function. The coefficient value is between -1 and 1, where a negative value indicates an inversely proportional relatinship and a positive value indicates a proportional relationship.
<!-- This method determines how well the relationship between two variables can be described using a monotonic function, i.e. a function that only ever increases or decreases, but not necessarily at a constant rate. Instead of using the raw data, each variable is converted into a set of ranks. The ranks of two variables are used to determine the correlation coefficient. -->
Column {data-width=400}
---

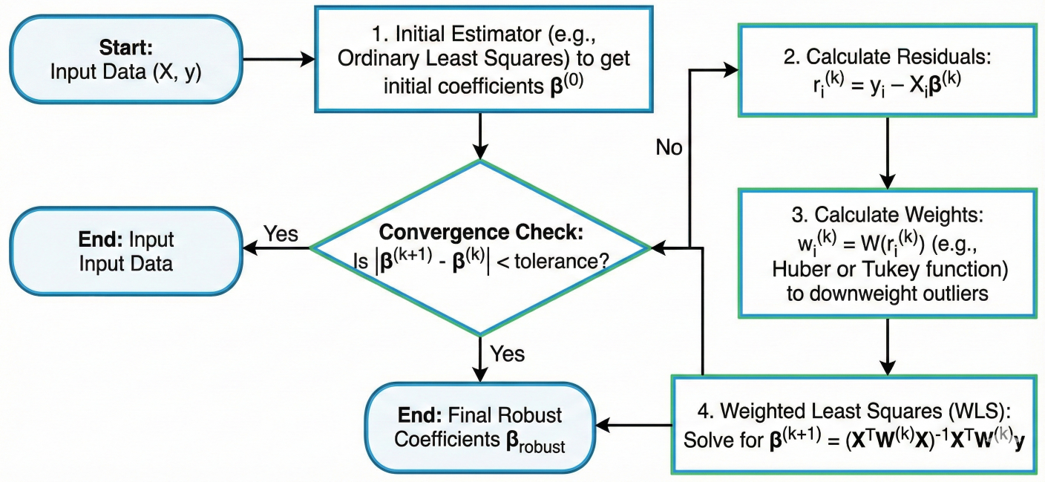

### IRLS Flowchart {data-height=400}
<!-- Figure 2 -->
<a name="IRLS-flowchart"></a>
```{r IRLS-flowchart, echo=FALSE, warning=FALSE, message=FALSE}
knitr::include_graphics("./Figures/IRLS_Flowchart.png")
```
### RF Illustration {data-height=600}
<!-- Figure 3 -->
<a name="RF-illustration"></a>
```{r RF-illustration, echo=FALSE, warning=FALSE, message=FALSE}
knitr::include_graphics("./Figures/RF_Regression.png")
```
EDA
===
Column {data-width=250}
---
### Investigating the Data
We begin with EDA of the full dataset. Discussion and conclusions and can be found in each tab for the following plots and tables:
* Pairwise scatterplots
* Predictor variable histograms
* Response variable histograms
* Spearman rank correlation coefficients between predictors and response variables
Column {.tabset data-width=750}
---
### Scatterplots
#### Discussion

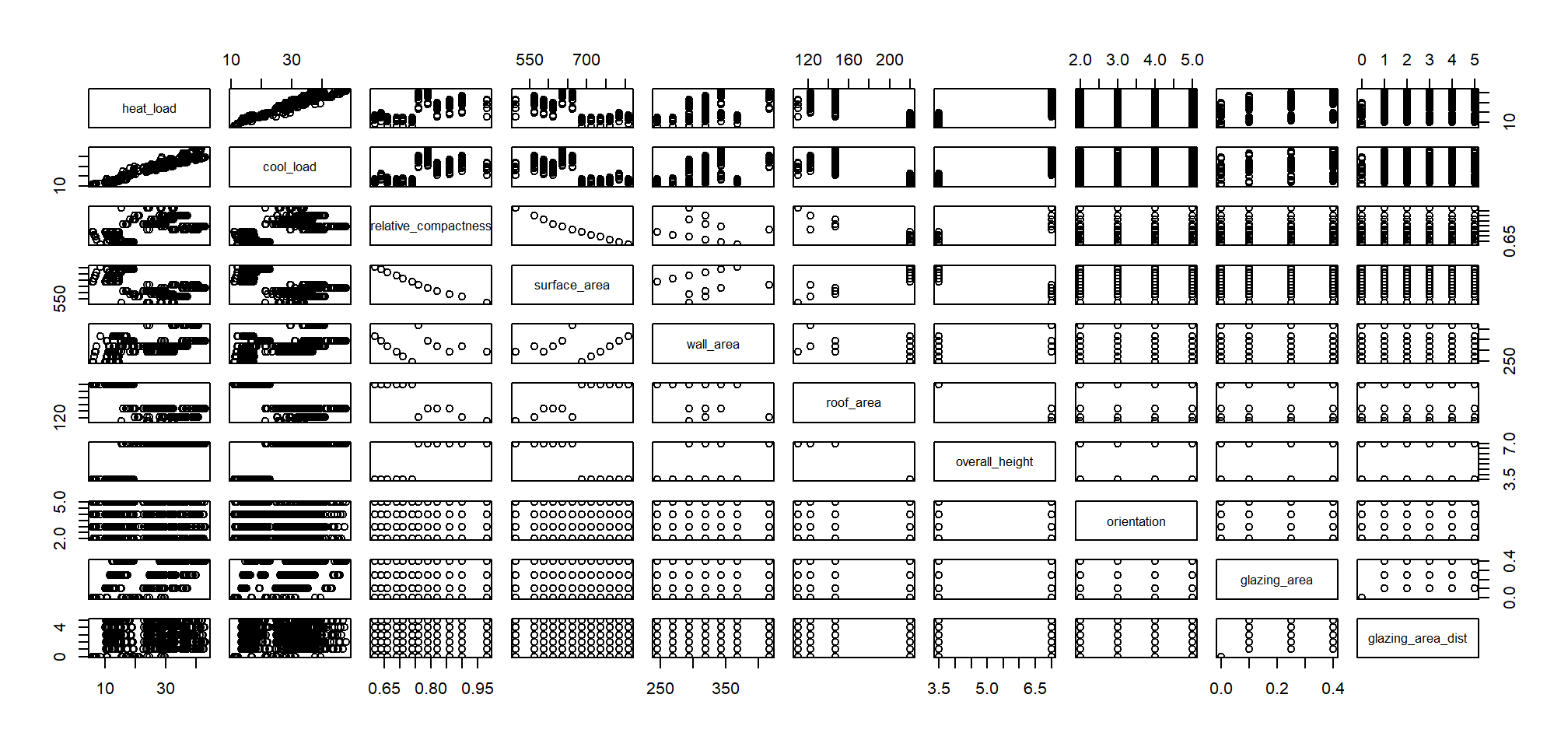

The pairwise scatterplot shows scatterplots for all predictor and response variables. There are no linear relationships between variables except for:
* Heat load and cool load
* Relative compactness and surface area
Since heat load and cool load are not used as predictors of one another, this relationship is not very useful. This supports the claim made by the original work: classical regression may be insufficient for modeling the complex relationships in this data.
```{r scatter-plots, fig.width=10.5, fig.height=5, fig.align='center', echo=FALSE}
oldpar <- par(no.readonly = TRUE)
par(bg = "white")
pairs(~heat_load + cool_load + relative_compactness + surface_area + wall_area + roof_area +
overall_height + orientation + glazing_area + glazing_area_dist, data = df) # Pairwise scatterplots
par(oldpar)
```
### Predictor Histograms
#### Discussion

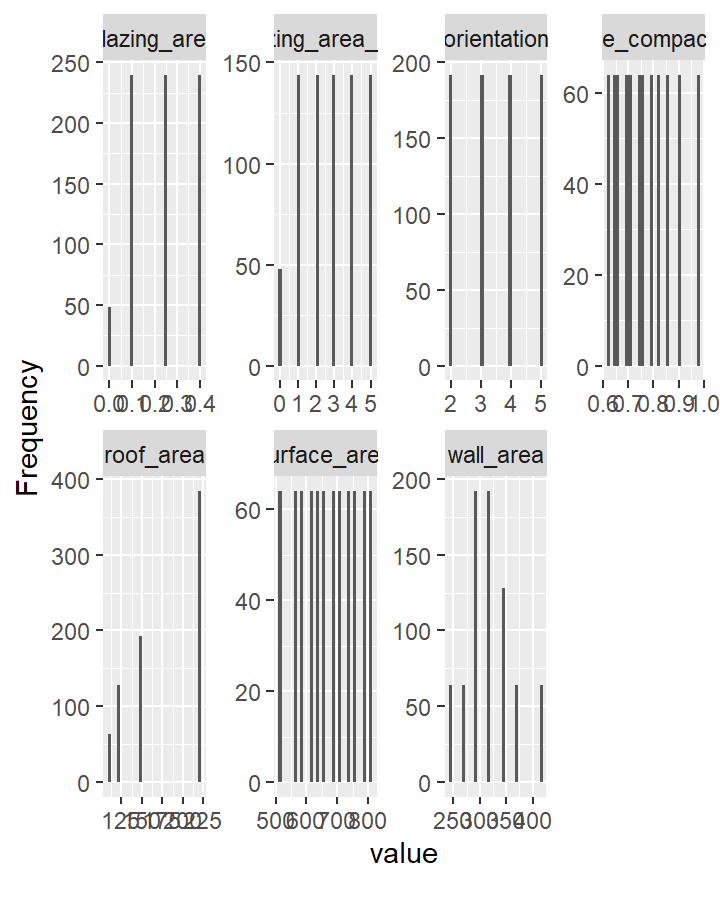

The predictor histograms show the following distributions found in the data:
* Discretely uniformly distributed: orientation, relative compactness, and surface area
* Piecewise uniform: glazing area and glazing area distribution
* Left-skewed: Roof area
* Normal: wall area
These distributions are intentional and to be expected due to the discrete nature of the data and the constraints around the simulated buildings discussed earlier.Note that there is no histogram shown for overall height. This is due to the discreteness of the data. There are only two possible values for this predictor: 3.5 and 7 meters.
```{r predictor-histograms, fig.width=10.5, fig.height=4.2, fig.align='center', echo=FALSE}
plot_histogram(df[, c(1:8)], nrow = 2, ncol = 4) # histograms of predictors
```
### Response Histograms
#### Discussion

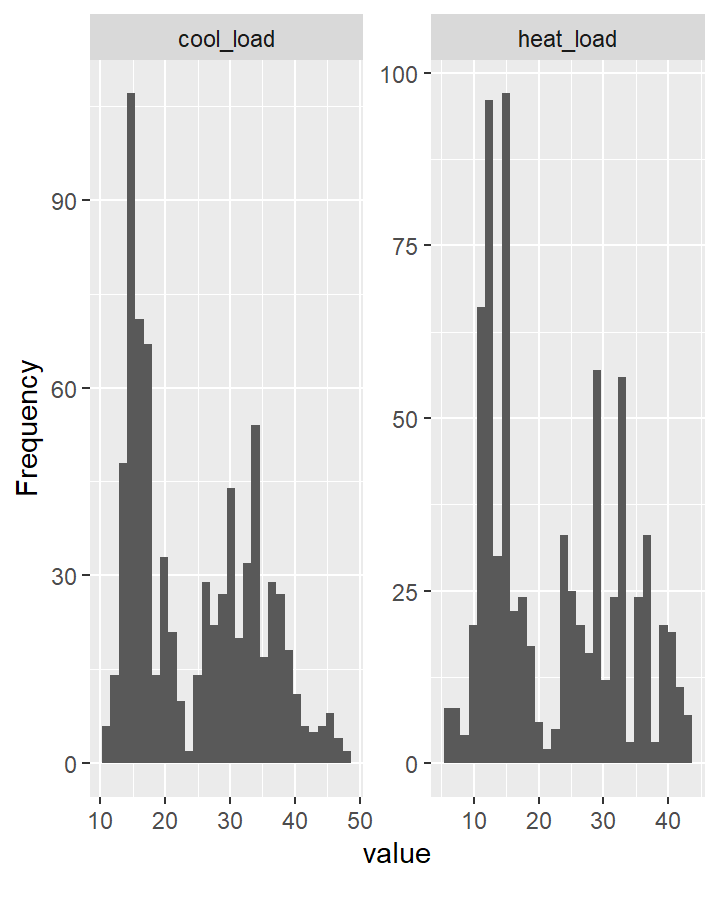

The response histograms show the following distribution found in the data:
* Bimodal distribution: heat load and cool load
By design, there is more continuity in the distributions of both response variables. There appears to be a slight imbalance in both variables, though this could partially be attributed to the size of the histogram bins.
```{r response-histograms, fig.width=10.5, fig.height=5, fig.align='center', echo=FALSE}
plot_histogram(df[, c(-1:-8)], nrow = 1, ncol = 2) # histograms of response variables
```
### Spearman Correlation Analysis
#### Discussion
Based on the Spearman rank correlation table, the following predictors have the strongest monotonic relationship with heating load, whether proportional or not:
* Overall height = 0.861 (proportional)
* Roof area = -0.804 (inversely proportional)
* Relative compactness = 0.622 (proportional)
* Surface area = -0.622 (inversely proportional)
* Wall area = 0.471 (proportional)
Perhaps unsurprisingly, the same relationships hold true for cooling load as well.
```{r spearman-plots, echo=FALSE}
# spearman_cor <- cor(df[, c(1:8)], method = "spearman") # Spearman correlation matrix of predictors
spearman_cor <- cor(df, method = "spearman") # Spearman correlation matrix of predictors
heat_cor <- spearman_cor[9, 1:8] # Spearman rank correlation coefficients between predictors and heat load
cool_cor <- spearman_cor[10, 1:8] # Spearman rank correlation coefficients between predictors and cool load
fmt_cor <- function(val) {
sprintf("%1.3f", val)
}
# Format the correlation coefficients to put into a table
cor_names <- c("Relative compactness", "Surface area", "Wall area", "Roof area",
"Overall height", "Orientation", "Glazing area",
"Glazing area distribution")
heat_cor_tt <- array(data = NA, dim = c(1, length(heat_cor)))
cool_cor_tt <- array(data = NA, dim = c(1, length(cool_cor)))
for (i in 1:length(heat_cor)) {
heat_cor_tt[i] <- fmt_cor(heat_cor[i])
cool_cor_tt[i] <- fmt_cor(cool_cor[i])
}
cor_df <- data.frame(
Predictor = cor_names,
`Correlation with Heat Load` = as.vector(heat_cor_tt),
`Correlation with Cool Load` = as.vector(cool_cor_tt)
)
names(cor_df) <- c("Predictor", "Correlation Coefficient with Heat Load", "Correlation Coefficient with Cool Load")
tt(cor_df) %>%
style_tt(j = 1:3, align = "c")
```
Model Selection
===

Column {data-width=300}
---
### Procedure
Model selection is an important step in classical regression analysis that aims to balance the trade-off between complexity and goodness-of-fit. This process makes sure the model captures real underlying patterns without overfitting. It is crucial for identifying a subset of variables, aiming to eliminate multicollinearity and obtain a model that is both interpretable and can generalize to new data.
To find the optimal set of predictors to use for modeling heating and cooling loads, four selection processes are used:
* Forward Selection
* Backward Selection
* Stepwise Selection
* Best Subset Selection
These processes are used for determining the best combination of variables for the heating and cooling load models. In theory, we can end up with four different models to choose from.
To make a final selection, we choose the model with the largest adjusted $R^2$ (similar to the best subset selection process) and/or the lowest root mean square error (RMSE). We use a significance level of $\alpha = 0.01$, the same as the original work. Model summary tables show the coefficient estimates and their significance level.
Column {.tabset data-width=700}
---
### Heat Load Models
The predictors that will be used for modeling heating load are:
* Relative compactness
* Surface area
* Wall area
* Overall height
* Glazing area
* Glazing area distribution
```{r heat-forward-model-summary, echo=FALSE, warning=FALSE, message=FALSE}
# Set the seed for random permutations of data later
set.seed(3)
full.heat_model <- lm(heat_load ~ relative_compactness + surface_area + wall_area + roof_area +
overall_height + orientation + glazing_area + glazing_area_dist, data = df)
full_fit.heat_forward <- stepAIC(full.heat_model, direction = "forward", trace = FALSE) # forward model
full_fit.heat_backward <- stepAIC(full.heat_model, direction = "backward", trace = FALSE) # backward model
full_fit.heat_step <- stepAIC(full.heat_model, direction = "both", trace = FALSE) # stepwise model
# Best subset model
full_fit.heat_subsets <- regsubsets(heat_load ~ relative_compactness + surface_area + wall_area +
overall_height + orientation + glazing_area + glazing_area_dist, data = df, nvmax = 6)
subs_heat_full <- summary(full_fit.heat_subsets)
subs_sum_heat_full <- summary(subs_heat_full)
best_size_heat_full <- which.max(subs_heat_full$adjr2)
best_terms_heat_full <- names(coef(full_fit.heat_subsets, best_size_heat_full))[-1]
best_formula_heat_full <- as.formula(paste("heat_load ~ ", paste(best_terms_heat_full, collapse = "+")))
full_fit.heat_best <- lm(best_formula_heat_full, data = df)
ms_heat <- modelsummary(
list("Forward Selection" = full_fit.heat_forward, "Backward Selection" = full_fit.heat_backward,
"Stepwise Selection" = full_fit.heat_step, "Best Subset" = full_fit.heat_best),
statistic = NULL,
gof_map = c("r.squared", "adj.r.squared", "nobs", "rmse"),
# title = "Heat Load Model Regression Results",
escape = FALSE,
stars = TRUE
)
ms_heat %>%
style_tt(i = 1:20, j = 1:5, background = "white", color = "white", bold = TRUE)
```
### Cool Load Models
The predictors that will be used for modeling cooling load are:
* Relative compactness
* Surface area
* Wall area
* Overall height
* Glazing area
```{r cool-forward-model-summary, echo=FALSE, warning=FALSE, message=FALSE}
full.cool_model <- lm(cool_load ~ relative_compactness + surface_area + wall_area + roof_area +
overall_height + orientation + glazing_area + glazing_area_dist, data = df)
full_fit.cool_forward <- stepAIC(full.cool_model, direction = "forward", trace = FALSE) # forward model
full_fit.cool_backward <- stepAIC(full.cool_model, direction = "backward", trace = FALSE) # backward model
full_fit.cool_step <- stepAIC(full.cool_model, direction = "both", trace = FALSE) # stepwise model
# Best subset model
full_fit.cool_subsets <- regsubsets(cool_load ~ relative_compactness + surface_area + wall_area +
overall_height + orientation + glazing_area + glazing_area_dist, data = df, nvmax = 6)
subs_cool_full <- summary(full_fit.cool_subsets)
subs_sum_cool_full <- summary(subs_cool_full)
best_size_cool_full <- which.max(subs_cool_full$adjr2)
best_terms_cool_full <- names(coef(full_fit.cool_subsets, best_size_cool_full))[-1]
best_formula_cool_full <- as.formula(paste("cool_load ~ ", paste(best_terms_cool_full, collapse = "+")))
full_fit.cool_best <- lm(best_formula_cool_full, data = df)
ms_cool <- modelsummary(
list("Forward Selection" = full_fit.cool_forward, "Backward Selection" = full_fit.cool_backward,
"Stepwise Selection" = full_fit.cool_step, "Best Subset" = full_fit.cool_best),
statistic = NULL,
gof_map = c("r.squared", "adj.r.squared", "nobs", "rmse"),
# title = "Cool Load Model Regression Results",
escape = FALSE,
stars = TRUE
)
ms_cool %>%
style_tt(i = 1:20, j = 1:5, background = "white", color = "white", bold = TRUE)
```
Model Analysis
===
Column {data-width=500}
---
### Cross-Validation Procedure
After model selection, the K-fold cross-validation (CV) experiment is conducted. We choose to standardize the predictors in order to assess the influence of each predictor on the response variables on the same scale. We use the same experiment parameters as the original work:
* $K = 10$
* Repetitions = 100
This means that the dataset is split into $K = 10$ equally (or nearly equally) sized "folds." For training the model, 9 of the 10 folds are used, while 1 fold is set aside for testing. Each fold is used once for testing, meaning the model is trained 10 separate times on different combinations of folds. This is one "repetition" of the process.
We perform 100 repetitions using 10-fold CV. The dataset is randomly shuffled at the beginning of each repetition so that unique folds are created for each repetition. After testing every test fold, the MAE, MSE, and MRE metrics are computed for the trained model.
### Error Metrics
To compare the MLR models to the original work, we use MAE, MSE, and MRE, defined as:
* $MAE = \dfrac{1}{S} \Sigma_{i \epsilon Q} |y_i - \hat{y}_i|$,
* $MSE = \dfrac{1}{S} \Sigma_{i \epsilon Q} |y_i - \hat{y}_i|^2$,
* $MRE = \dfrac{100}{S} \Sigma_{i \epsilon Q} \dfrac{|y_i - \hat{y}_i|}{y_i}$,
where $\hat{y}_i$ is the predicted output variable, $y_i$ is the actual output variable for the $i^{th}$ entry in the test fold, $S$ is the number of samples in the test fold, and $Q$ contains the indices of the test fold. We end up with 1000 independent error measurements. The reported metrics are the average values, plus or minus one standard deviation.
```{r k-fold-testing, echo=FALSE, warning=FALSE, message=FALSE}
# Define the number of repetitions and folds
nRep <- 100
kFold <- 10
# Create empty vectors for model results found during evaluation
empty_vecs <- c(1, nRep*kFold) # dimensionality of result vectors
model_res.heat.MAE <- array(data = NA, dim = empty_vecs)
model_res.heat.MSE <- array(data = NA, dim = empty_vecs)
model_res.heat.MRE <- array(data = NA, dim = empty_vecs)
model_res.cool.MAE <- array(data = NA, dim = empty_vecs)
model_res.cool.MSE <- array(data = NA, dim = empty_vecs)
model_res.cool.MRE <- array(data = NA, dim = empty_vecs)
# Create empty vectors for model coefficients obtained during evaluation
heat_coeff <- tibble(
relative_compactness = as.vector(array(data = NA, dim = empty_vecs)),
surface_area = as.vector(array(data = NA, dim = empty_vecs)),
wall_area = as.vector(array(data = NA, dim = empty_vecs)),
overall_height = as.vector(array(data = NA, dim = empty_vecs)),
glazing_area = as.vector(array(data = NA, dim = empty_vecs)),
glazing_area_dist = as.vector(array(data = NA, dim = empty_vecs))
)
cool_coeff <- tibble(
relative_compactness = as.vector(array(data = NA, dim = empty_vecs)),
surface_area = as.vector(array(data = NA, dim = empty_vecs)),
wall_area = as.vector(array(data = NA, dim = empty_vecs)),
overall_height = as.vector(array(data = NA, dim = empty_vecs)),
glazing_area = as.vector(array(data = NA, dim = empty_vecs))
)
# Define the predictor variables, used later for normalization
pred_vars <- c("relative_compactness", "surface_area", "wall_area",
"roof_area", "overall_height", "orientation",
"glazing_area", "glazing_area_dist")
# Perform 100 repetitions of 10-fold CV testing with the data
cc <- 1 # index counter for storing results
for (i in 1:nRep) {
# At the beginning of each repetition, randomly shuffle the entire dataset
df_shuffle <- df[sample(nrow(df)), ]
# Create cross-validation (CV) folds using caret --> createFolds function
folds.test_idx <- createFolds(y = df_shuffle$heat_load, k = kFold, list = TRUE, returnTrain = FALSE) # test data folds
folds.train_idx <- list() # placeholder list for training data folds
# Loop through the test folds and get corresponding training folds
for (j in 1:length(folds.test_idx)) {
field_name <- sprintf("Fold%02d", j) # Current fold name
test_indices <- folds.test_idx[[j]] # current folds test indices
# Calculate the training indices and set in folds list
new_idx <- setdiff(seq_len(nrow(df_shuffle)), test_indices)
folds.train_idx[[field_name]] <- new_idx # current folds training indices
# Clear loop specific variables
suppressWarnings(rm(field_name, test_indices, new_idx))
}
# Loop through each fold for the current repetition and create a MLR using the predictors pre-determined to be the best
# for the heat load and cool load models
# Heat model predictors: relative_compactness, surface_area, wall_area, overall_height, glazing_area, glazing_area_dist
# Cool model predictors: relative_compactness, surface_area, wall_area, overall_height, glazing_area
for (j in 1:length(folds.test_idx)) {
test_idx <- folds.test_idx[[j]] # current folds test indices
train_idx <- folds.train_idx[[j]] # current folds training indices
# Get the raw training and testing data
df_train_raw <- df_shuffle[train_idx, ]
df_test_raw <- df_shuffle[test_idx, ]
# Calculate normalization parameters using training data predictors
# norm_params <- preProcess(df_train_raw[, pred_vars], method = c("range")) # normalizes predictors 0-1
norm_params <- preProcess(df_train_raw[, pred_vars], method = c("center", "scale")) # standardizes predictors
# Normalize predictors based on the current training fold
df_train <- predict(norm_params, df_train_raw)
df_test <- predict(norm_params, df_test_raw)
# Fit the heat and cool load models using the current training data
heat_model <- lm(heat_load ~ relative_compactness + surface_area + wall_area +
overall_height + glazing_area + glazing_area_dist, data = df_train)
cool_model <- lm(cool_load ~ relative_compactness + surface_area + wall_area +
overall_height + glazing_area, data = df_train)
# Store each models standardized coefficients
coeffs_heat <- coef(heat_model)
coeffs_cool <- coef(cool_model)
heat_coeff$relative_compactness[cc] <- abs(coeffs_heat["relative_compactness"])
heat_coeff$surface_area[cc] <- abs(coeffs_heat["surface_area"])
heat_coeff$wall_area[cc] <- abs(coeffs_heat["wall_area"])
heat_coeff$overall_height[cc] <- abs(coeffs_heat["overall_height"])
heat_coeff$glazing_area[cc] <- abs(coeffs_heat["glazing_area"])
heat_coeff$glazing_area_dist[cc] <- abs(coeffs_heat["glazing_area_dist"])
cool_coeff$relative_compactness[cc] <- abs(coeffs_cool["relative_compactness"])
cool_coeff$surface_area[cc] <- abs(coeffs_cool["surface_area"])
cool_coeff$wall_area[cc] <- abs(coeffs_cool["wall_area"])
cool_coeff$overall_height[cc] <- abs(coeffs_cool["overall_height"])
cool_coeff$glazing_area[cc] <- abs(coeffs_cool["glazing_area"])
# Get the actual values of the heat and cool load data for the test data
actuals.heat <- df_test$heat_load
actuals.cool <- df_test$cool_load
# Make heat and cool load predictions with test data
preds.heat <- predict(heat_model, newdata = df_test) # heat load predictions
preds.cool <- predict(cool_model, newdata = df_test) # cool load predictions
# Calculate and store MAE
model_res.heat.MAE[cc] <- mean(abs(actuals.heat - preds.heat))
model_res.cool.MAE[cc] <- mean(abs(actuals.cool - preds.cool))
# Calculate and store MSE
model_res.heat.MSE[cc] <- mean((actuals.heat - preds.heat)^2)
model_res.cool.MSE[cc] <- mean((actuals.cool - preds.cool)^2)
# Calculate and store MRE, using a small epsilon to avoid dividing by zero
model_res.heat.MRE[cc] <- 100 * mean(abs(actuals.heat - preds.heat) / pmax(actuals.heat, 1e-6))
model_res.cool.MRE[cc] <- 100 * mean(abs(actuals.cool - preds.cool) / pmax(actuals.cool, 1e-6))
# Increment the counter for the next fold and/or repetition
cc <- cc + 1
# Remove variables that will be recomputed/made, just in case of memory issues
suppressWarnings(rm(test_idx, train_idx, df_train, df_test, df_train_raw, df_test_raw,
norm_params, heat_model, cool_model, actuals.heat, actuals.cool,
preds.heat, preds.cool))
}
# Delete current repetitions shuffled dataset and folds
suppressWarnings(rm(df_shuffle, folds))
}
# Convert the results to vectors
model_res.heat.MAE <- as.vector(model_res.heat.MAE)
model_res.heat.MSE <- as.vector(model_res.heat.MSE)
model_res.heat.MRE <- as.vector(model_res.heat.MRE)
model_res.cool.MAE <- as.vector(model_res.cool.MAE)
model_res.cool.MSE <- as.vector(model_res.cool.MSE)
model_res.cool.MRE <- as.vector(model_res.cool.MRE)
# Compute average MAE, MSE, and MRE
heat_res.MAE.avg <- mean(model_res.heat.MAE)
heat_res.MSE.avg <- mean(model_res.heat.MSE)
heat_res.MRE.avg <- mean(model_res.heat.MRE)
cool_res.MAE.avg <- mean(model_res.cool.MAE)
cool_res.MSE.avg <- mean(model_res.cool.MSE)
cool_res.MRE.avg <- mean(model_res.cool.MRE)
# Compute standard deviation of MAE, MSE, and MRE
heat_res.MAE.std <- sd(model_res.heat.MAE)
heat_res.MSE.std <- sd(model_res.heat.MSE)
heat_res.MRE.std <- sd(model_res.heat.MRE)
cool_res.MAE.std <- sd(model_res.cool.MAE)
cool_res.MSE.std <- sd(model_res.cool.MSE)
cool_res.MRE.std <- sd(model_res.cool.MRE)
```
Column {.tabset data-width=500}
---
### Heating Load Model Results
Heating load model error metrics show the following MAE, MSE, and MRE results:
* $MAE: RF < MLR < IRLS$
* $MSE: RF < MLR < IRLS$
* $MRE: RF < MLR < IRLS$
The RF heating load model significantly outperforms the MLR and IRLS models in every metric. The MLR model outperforms the IRLS model in every metric. These results back up the claim made in the original work: the relationships between the variables are too complicated to be captured with classical regression analysis.
```{r format-results, echo=FALSE, warning=FALSE, message=FALSE}
# Function to format mean and sd into a string "Mean ± SD"
fmt_results <- function(data_vec) {
avg <- mean(data_vec)
std <- sd(data_vec)
sprintf("%.2f \u00B1 %.2f", avg, std)
}
# Create the MLR strings for the heat model
mlr_heat <- c(
MAE = fmt_results(model_res.heat.MAE),
MSE = fmt_results(model_res.heat.MSE),
MRE = fmt_results(model_res.heat.MRE)
)
# Create the MLR strings for the cool model
mlr_cool <- c(
MAE = fmt_results(model_res.cool.MAE),
MSE = fmt_results(model_res.cool.MSE),
MRE = fmt_results(model_res.cool.MRE)
)
# Create the IRLS string using the results reported by the paper
irls_heat <- c("2.14 \u00B1 0.24", # MAE
"9.87 \u00B1 2.41", # MSE
"10.09 \u00B1 1.01") # MRE
irls_cool <- c("2.21 \u00B1 0.28", # MAE
"11.46 \u00B1 3.63", # MSE
"9.41 \u00B1 0.80") # MRE
# Create the RF string using the results reported by the paper
rf_heat <- c("0.51 \u00B1 0.11", # MAE
"1.03 \u00B1 0.54", # MSE
"2.18 \u00B1 0.64") # MRE
rf_cool <- c("1.42 \u00B1 0.25", # MAE
"6.59 \u00B1 1.56", # MSE
"4.62 \u00B1 0.70") # MRE
# Create new data frames for the heat and cool load results
heat_df <- data.frame(
Metric = c("MAE", "MSE", "MRE"),
# Heat load columns
MLR = mlr_heat,
IRLS = irls_heat,
RF = rf_heat
)
cool_df <- data.frame(
Metric = c("MAE", "MSE", "MRE"),
# Cool load columns
MLR = mlr_cool,
IRLS = irls_cool,
RF = rf_cool
)
```
```{r heat-load-results, echo=FALSE}
tt(heat_df) %>%
# Group columns under "Heat Load" and "Cool Load" headers
group_tt(j = list("Model MAE, MSE, and MRE" = 2:4)) %>%
# Rename the columns to just show the model names (removing the _Heat/_Cool suffix)
style_tt(i = 0, j = 2:4, text = rep(c("MLR", "IRLS", "RF"), 2)) %>%
# Center align all columns
style_tt(j = 1:4, align = "c")
```
### Cooling Load Model Results
Cooling load model error metrics show the following MAE, MSE, and MRE results:
* $MAE: RF < IRLS < MLR$
* $MSE: RF < MLR < IRLS$
* $MRE: RF < MLR < IRLS$
Like the heating model results, the RF model significantly outperforms the MLR and IRLS models in every metric. However, between the MLR and IRLS models, there is a slight but notable difference in the results for the cooling model.
While the IRLS model achieves a slightly lower average MAE than the MLR model, it has a larger average MSE. This is an interesting result because of how errors are treated in each metric. MAE treats all errors linearly, while MSE penalizes larger errors due to squaring the residual value. This indicates that the MLR model has less extreme errors despite having a higher average error, making it more robust to outliers and new data. This clearly shows that properly selecting predictors outperforms simple learning methods meant to handle noise and outliers.
The cooling model results further verify the claim that for this dataset, RF is a superior method to MLR and IRLS for regression modeling and analysis. It is much more capable of capturing the non-linear relationships between variables.
```{r cool-load-results, echo=FALSE}
tt(cool_df) %>%
# Group columns under "Heat Load" and "Cool Load" headers
group_tt(j = list("Model MAE, MSE, and MRE" = 2:4)) %>%
# Rename the columns to just show the model names (removing the _Heat/_Cool suffix)
style_tt(i = 0, j = 2:4, text = rep(c("MLR", "IRLS", "RF"), 2)) %>%
# Center align all columns
style_tt(j = 1:4, align = "c")
```
### Importance of Variables
The table shows the importance of each predictor for a given response variable determined via RF. For the MLR model, the "importance" is the magnitude of the standardized coefficients. For a better understanding of how RF determines variable importance, we recommend reviewing the literature [@strobl2007bias]. The ranking of variable importance is denoted in the parenthesis next to each variables importance value, where 1 is the most important.
The heating and cooling load RF models have similar orders of importance, but the cooling load model found glazing area distribution and orientation to be more important than its heating load counterpart. The heating and cooling load MLR models have the same order of importance for the predictors they have in common.
The MLR heating load model has glazing area distribution area as an additional predictor. Interestingly, the RF model found that roof area and orientation were two of the least important predictors in both models, both of which were removed as predictors from the MLR models.
The MLR cooling load model removed glazing area distribution as a predictor, which the RF cooling load model found to have moderate relative importance. However, both RF models found glazing area to be the most important predictor, while both MLR models found it to be one of the least important variables used.
The MLR models also significantly overvalued overall height as a predictor in both models. Both RF models found it to be the least important variable. These results point to the same conclusion from the original work: classical regression analysis is not capable of capturing the complex, non-linear relationships in this dataset.
```{r pred-importance, echo=FALSE}
# Function to format mean and sd into a string "Mean ± SD" including importance rank
fmt_imp <- function(data_vec) {
N <- length(data_vec$Means) # number of fields
means <- data_vec$Means # get the means
sorted_order <- order(as.vector(means), decreasing = TRUE) # sorted based on average values (large to small)
# Create string field for each variable
data_vec$res_string <- vector(mode = "character", length = N)
for (i in 1:N) {
data_vec$res_string[i] <- sprintf("%.2f \u00B1 %.2f (%d)", data_vec$Means[i],
data_vec$Sigmas[i], which(sorted_order == i))
}
# Return updated dataframe
return(data_vec)
}
# Create the RF string using the results reported by the paper
heat_importance_RF <- c("50.51 \u00B1 1.15 (2)",
"50.41 \u00B1 1.41 (3)",
"40.16 \u00B1 1.09 (4)",
"20.40 \u00B1 0.95 (6)",
"8.97 \u00B1 0.68 (8)",
"18.51 \u00B1 0.44 (7)",
"93.12 \u00B1 1.50 (1)",
"38.84 \u00B1 0.94 (5)")
cool_importance_RF <- c("43.74 \u00B1 1.11 (2)",
"43.55 \u00B1 1.08 (3)",
"32.16 \u00B1 0.83 (5)",
"20.12 \u00B1 0.87 (7)",
"9.41 \u00B1 0.72 (8)",
"22.03 \u00B1 0.48 (6)",
"86.92 \u00B1 1.58 (1)",
"39.07 \u00B1 0.97 (4)")
# Get the MLR heat models variable order of importance
heat_vars <- c("relative_compactness", "surface_area", "wall_area",
"overall_height", "glazing_area", "glazing_area_dist")
heat_means <- c(mean(heat_coeff$relative_compactness), mean(heat_coeff$surface_area), mean(heat_coeff$wall_area),
mean(heat_coeff$overall_height), mean(heat_coeff$glazing_area), mean(heat_coeff$glazing_area_dist))
heat_sigs <- c(sd(heat_coeff$relative_compactness), sd(heat_coeff$surface_area), sd(heat_coeff$wall_area),
sd(heat_coeff$overall_height), sd(heat_coeff$glazing_area), sd(heat_coeff$glazing_area_dist))
heat_coeff_data <- data.frame(
Means = heat_means,
Sigmas = heat_sigs,
Name = heat_vars
)
heat_coeff_data <- fmt_imp(heat_coeff_data)
heat_importance_MLR <- c(heat_coeff_data$res_string[1],
heat_coeff_data$res_string[2],
heat_coeff_data$res_string[3],
"NA", # roof_area
heat_coeff_data$res_string[4],
"NA", # orientation
heat_coeff_data$res_string[5],
heat_coeff_data$res_string[6])
# Get the MLR cool models variable order of importance
cool_vars <- c("relative_compactness", "surface_area", "wall_area",
"overall_height", "glazing_area", "glazing_area_dist")
cool_means <- c(mean(cool_coeff$relative_compactness), mean(cool_coeff$surface_area), mean(cool_coeff$wall_area),
mean(cool_coeff$overall_height), mean(cool_coeff$glazing_area), mean(cool_coeff$glazing_area_dist))
cool_sigs <- c(sd(cool_coeff$relative_compactness), sd(cool_coeff$surface_area), sd(cool_coeff$wall_area),
sd(cool_coeff$overall_height), sd(cool_coeff$glazing_area), sd(cool_coeff$glazing_area_dist))
cool_coeff_data <- data.frame(
Means = cool_means,
Sigmas = cool_sigs,
Name = cool_vars
)
cool_coeff_data <- fmt_imp(cool_coeff_data)
cool_importance_MLR <- c(cool_coeff_data$res_string[1],
cool_coeff_data$res_string[2],
cool_coeff_data$res_string[3],
"NA", # roof_area
cool_coeff_data$res_string[4],
"NA", # orientation
cool_coeff_data$res_string[5],
"NA") # glazing_area_dist
# Create new data frames for the heat and cool load results
importance_df <- data.frame(
Measure = c("relative_compactness", "surface_area", "wall_area", "roof_area",
"overall_height", "orientation", "glazing_area", "glazing_are_dist"),
# Heat load columns
`RF Importance for Heating Load` = heat_importance_RF,
`MLR Importance for Heating Load` = heat_importance_MLR,
# Cool load columns
`RF Importance for Cooling Load` = cool_importance_RF,
`MLR Importance for Cooling Load` = cool_importance_MLR
)
names(importance_df) <- c("Measure", "RF - Heating", "MLR - Heating",
"RF - Cooling", "MLR - Cooling")
# Table showing importance of input variables as determined by RF for the output variables (from original paper)
tt(importance_df) %>%
# Center align all columns
style_tt(j = 1:5, align = "c")
```
Summary
===
Column {data-width=300}
---
### Final Model Interpretations
Given the final MLR heating and cooling load estimated standardized coefficients, the estimated models can be written as follows:
* $\hat{Heat \space Load} = 6.85(\textit{relative compactness}) + 7.69(\textit{surface area}) + \newline 2.65(\textit{wall area}) + 7.30(\textit{overall height}) + \newline 2.66(\textit{glazing area}) + 0.32(\textit{glazing area distribution})$
* $\hat{Cool \space Load} = 7.49(\textit{relative compactness}) + 7.78(\textit{surface area}) + \newline 1.95(\textit{wall area}) + 7.50(\textit{overall height}) + \newline 1.97(\textit{glazing area})$
Since only the predictors were standardized, interpretation is as follows, within model context. Relative compactness from the heating load model is used here as an example: for every one-standard-deviation change in relative compactness, the expected change in heat load is 6.85 units, holding all other variables constant.
Column {data-width=350}
---
### Conclusion
In this project, we perform 10-fold CV of a publicly available dataset from simulated EPB data. Previous work [@tsanas2012accurate] explored the use of IRLS and RF to model heating and cooling loads given 8 predictors, claiming that classical regression analysis was insufficient for capturing the complex nature of the relationships between variables. This work explored that claim by going through a model selection process that removed insignificant predictors from the heating and cooling load models when using the full dataset. 10-fold CV testing was conducted 100 times to replicate the experiment in the original work, providing MAE, MSE, and MRE metrics for direct comparison to the published IRLS and RF results.
We found that while RF was superior to the MLR models in this work, proper variable selection for the MLR models actually resulted in better performance than the IRLS models. Since IRLS is designed specifically for optimizing regression model coefficients and to handle outliers, this is a significant result. It shows that while RF is still superior for better capturing highly non-linear relationships, finely selecting the best predictors for classical regression analysis is better than simply using all variables and using IRLS in an attempt to optimize the model.
It is important to note that all of the results from this project, and the published work, is unlikely to generalize well in the real world. The size of the dataset alone (768 observations) is not enough to generalize to cities, nations, or the world. In addition, all of the buildings in this $\textit{simulated}$ dataset had very specific constraints, including:
* Identical build quality and materials
* Same number of residents per building (7)
* All buildings were located in Athens, Greece
* All buildings used a fixed activity rate of 70 Watts
However, the dataset is sufficient for comparing estimated models using different methods. This is important when it comes to real-world data, as the results from this work, the published work, and any prior work, guide intuitions and decisions made when it comes to real-world analysis.
